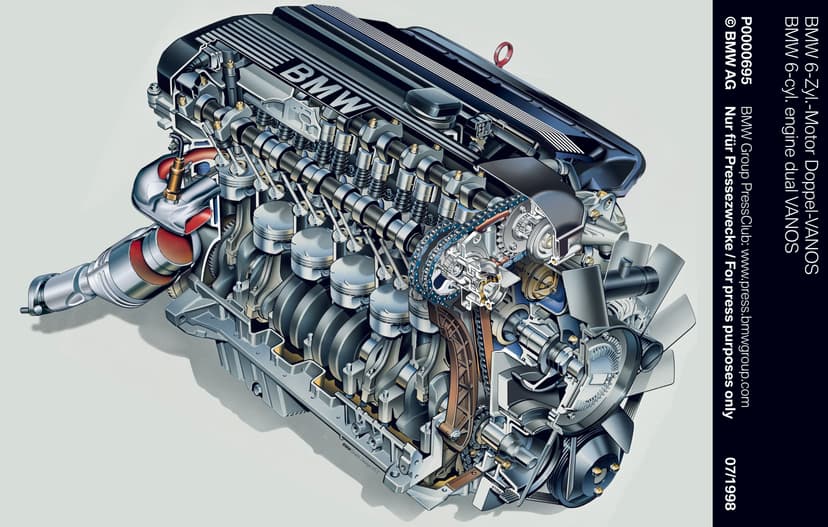

M54

The BMW M54 is a highly regarded, naturally aspirated inline-6 gasoline engine produced from 2000 to 2006. Known for its silky-smooth power delivery and exceptional reliability, it served as the workhorse engine for iconic models like the E46 3 Series, E39 5 Series, and E83/E53 X models.

The BMW M54 engine stands out for its engineering balance, combining smooth power delivery with high efficiency for its era.

Technical Architecture

• Inline-6 Layout: Naturally balanced configuration eliminates primary and secondary engine vibrations.
• Aluminum Construction: Both the engine block and cylinder head are made of aluminum to reduce weight.
• Cast-Iron Liners: Cast-iron cylinder sleeves are used inside the aluminum block for maximum durability.

Performance Technology

• Double-VANOS: Continuous variable valve timing on both intake and exhaust camshafts improves torque and emissions.]
• DISA Valve: A dual-resonance intake manifold dynamically changes intake runner lengths to optimize airflow across the RPM range.
• Electronic Throttle (Drive-by-Wire): Replaces traditional mechanical cables with an electronic throttle body for smoother throttle response.
• Siemens MS43/MS45 ECU: Advanced engine management controls fueling, ignition timing, and diagnostics.
